LM317 - 5amp voltage regulator circuit

07.03.24

Circuits

The LM317 is a versatile and widely used voltage regulator integrated circuit (IC) that plays a pivotal role in electronic circuits for providing stable and adjustable output voltage. Developed by Texas Instruments, the LM317 operates as a three-terminal positive voltage regulator, capable of delivering output voltages ranging from 1.25 to 37 volts. Its inherent ability to regulate voltage with low dropout, minimal external components, and thermal overload protection makes it an indispensable component in various applications, including power supplies, battery chargers, and audio amplifier circuits.

The LM317 utilizes an adjustable output voltage formula, Vout = 1.25 * (1 + R2/R1), allowing for precise control over the desired output. Its internal reference voltage of 1.25 volts ensures a stable reference point, and the adjustment pin facilitates fine-tuning through external resistors. With a robust design and widespread availability, the LM317 remains a cornerstone in electronics, offering engineers and hobbyists an efficient solution for achieving reliable and regulated power in diverse electronic systems. Whether used for prototyping or production, the LM317 continues to be a trusted choice for voltage regulation, providing stability and flexibility in countless electronic designs.

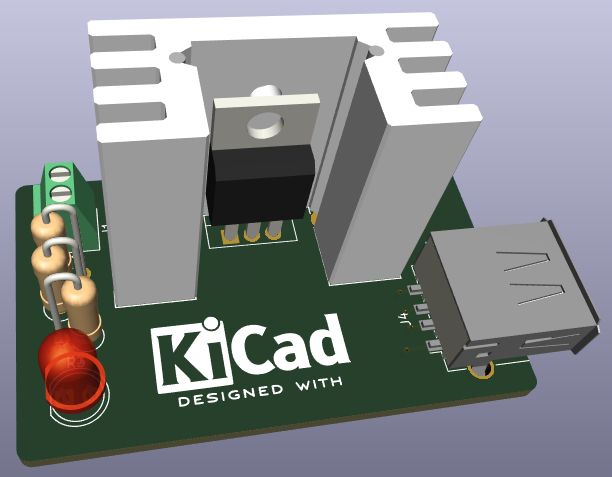

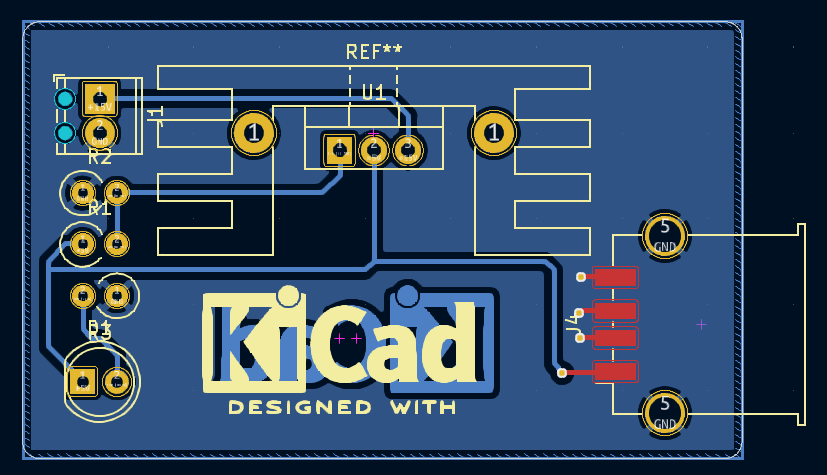

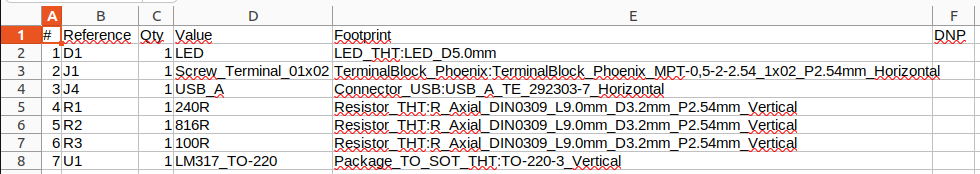

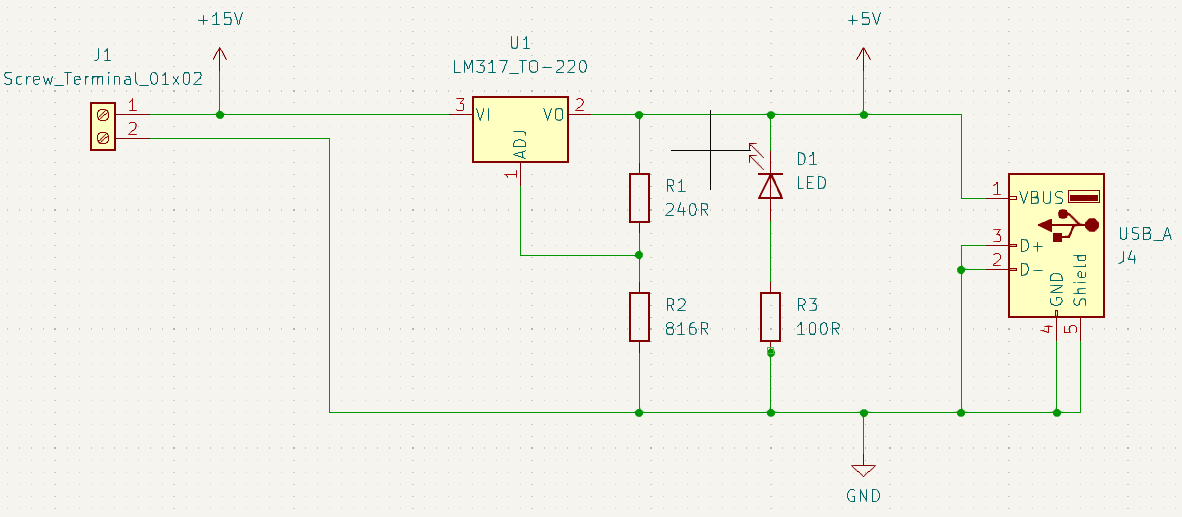

Here's some images:
