KiCAD 1: Engine timer

31.12.23

Circuits

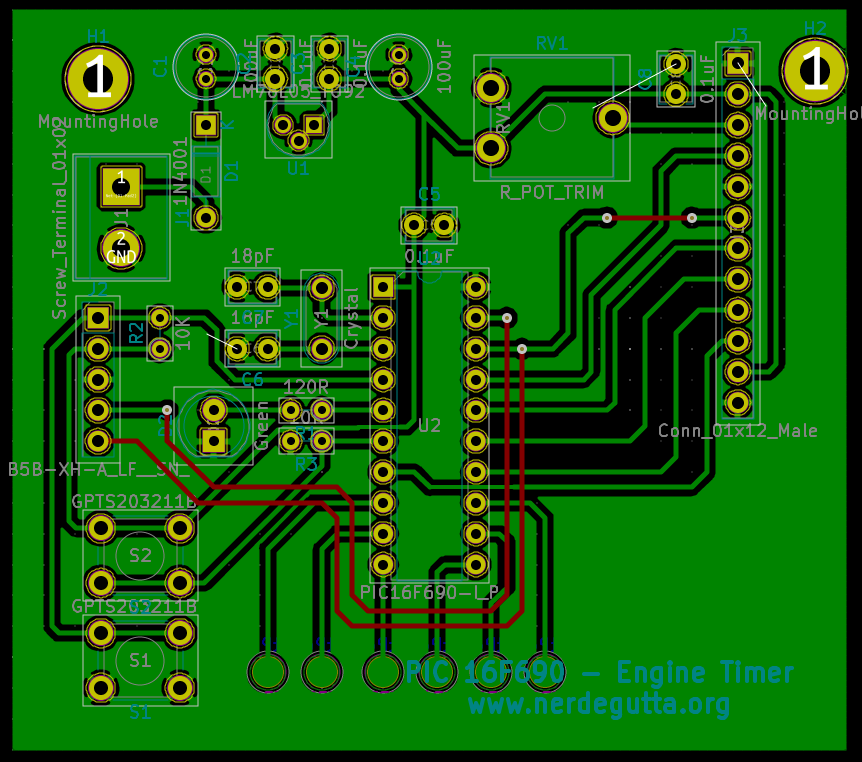

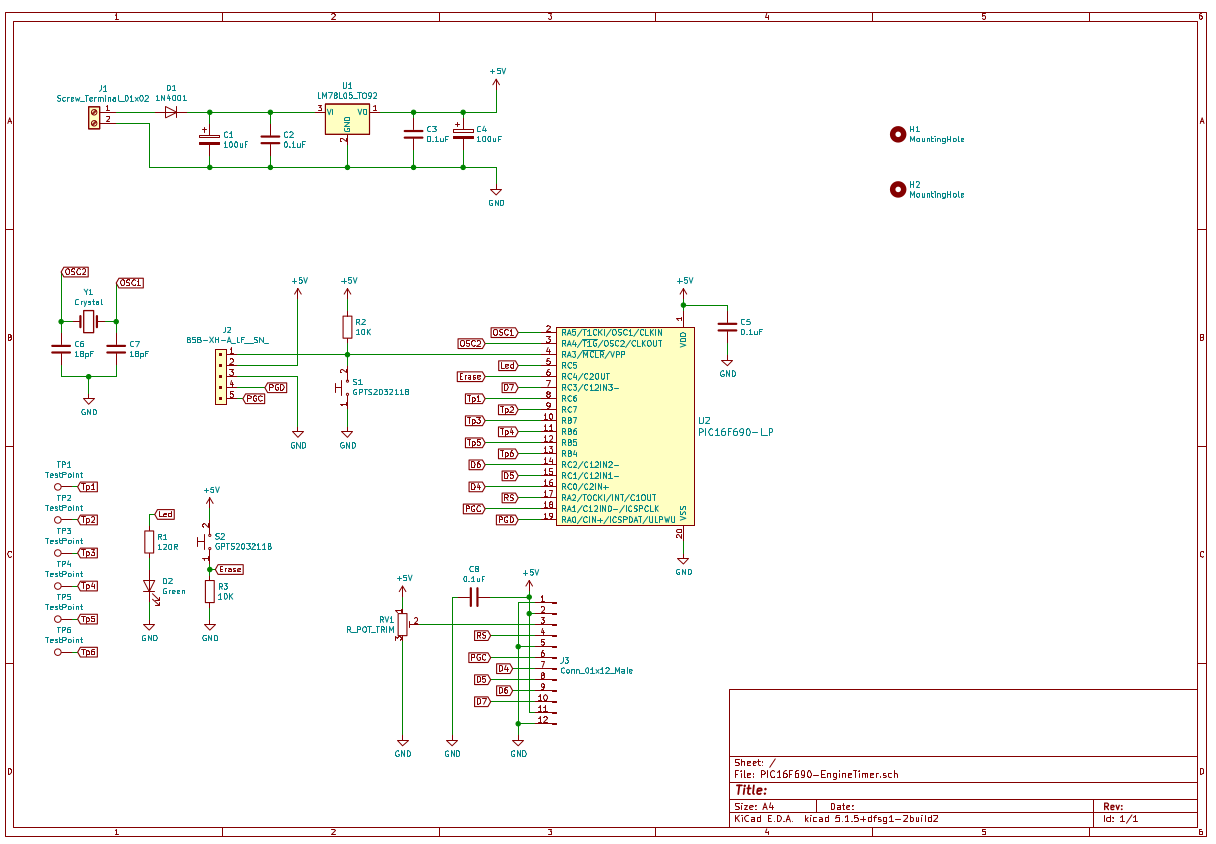

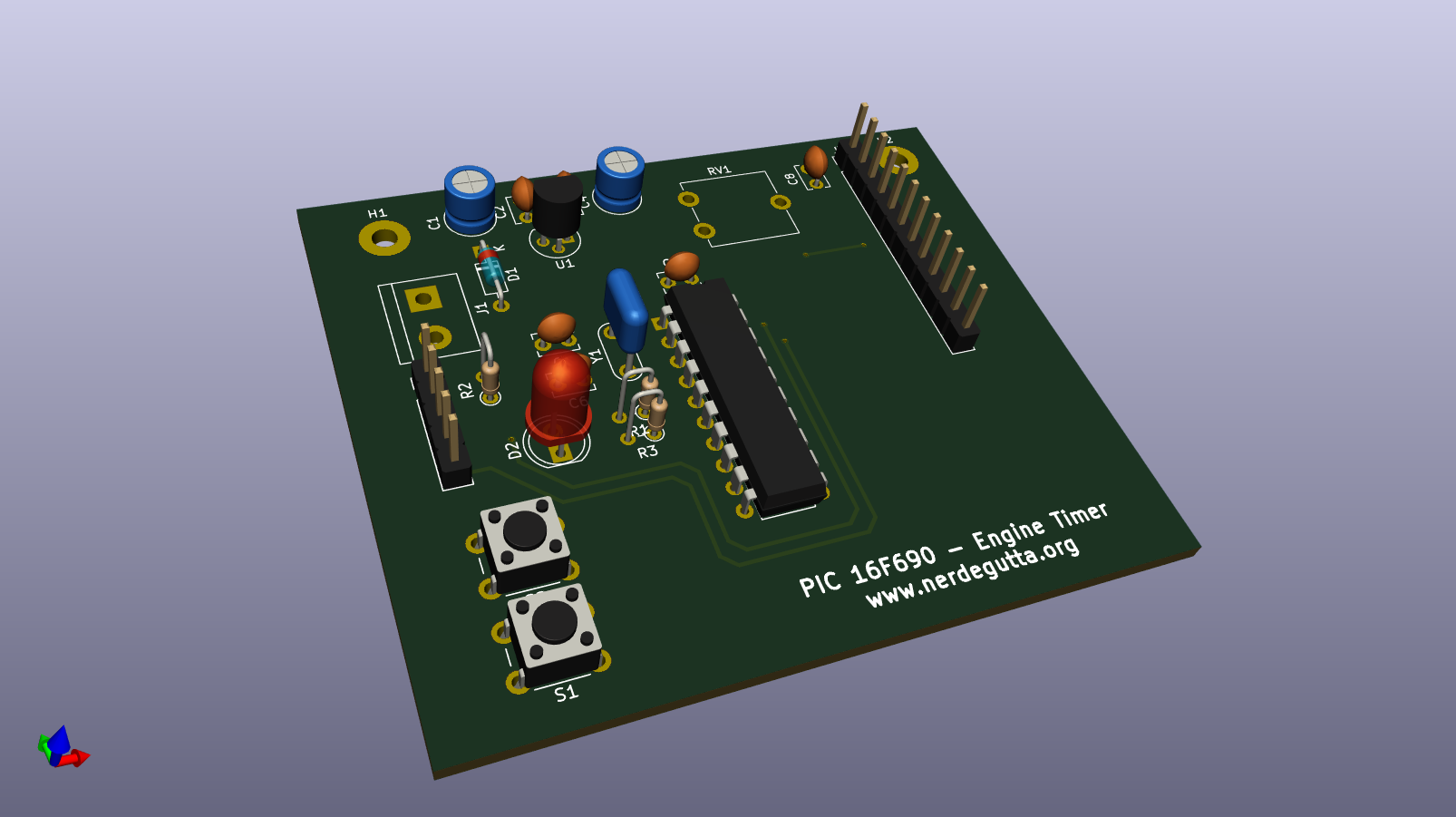

The heart of this circuit is the PIC 16F690 IC from Microchip. It's a small little beauty. As soon as power is applied, the clock starts ticking.

Check out the Embedded section for the timer program.
